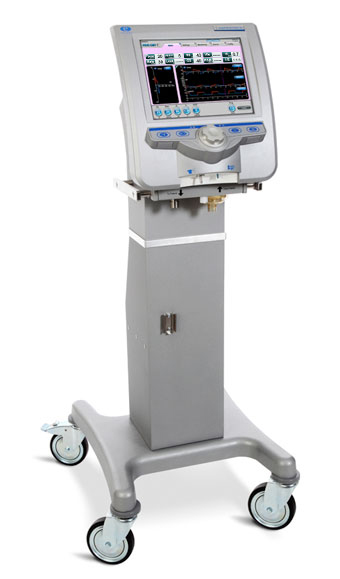

Inspiration 5i Ventilator

  •


    "A respiratory therapist must have designed this ventilator."

    Illinois


    Highlights

    Inspiration® 5i Ventilators are highly versatile and designed with the clinician in mind. Our patented Swiss pneumatic design allows high performance PSOL valves to provide outstanding breath delivery to infant through adult patients. We offer one of the most comprehensive platforms on Inspiration ventilators, including—as standard—Heliox delivery, battery power, built-in compressor, volume targeted modes, APRV (SPAP), noninvasive ventilation and auto-weaning modes.  Inspiration ventilators feature an intuitive and easy-to-learn, comprehensive graphical user interface with user configurable screens.  Ideal Body Weight start up settings gives the clinician a quick and safe initiation to ventilation.

    With proven reliability, the Inspiration offers one of the best warranty periods, as a standard, along with one of the lowest costs of ownership in the industry.

      eVent Medical | Inspiration® 5i Ventilator
  •


    "A respiratory therapist must have designed this ventilator."

    Illinois


    Features
    • Low cost of Ownership
    • Infant through adult
    • Invasive and noninvasive
    • Feedback-controlled NCPAP
      and NCPAP+
    • High performance PSOL
      and active exhalation
    • Comprehensive graphics
      and trending
    • Touch screen
    • Intra-hospital patient transport
    • Internet remote viewing
    • Heliox


    A Clinician Focused Respiratory Product

  •


    "A respiratory therapist must have designed this ventilator."

    Illinois


    Gallery

Inspiration 5i Ventilator



Download
International
Brochure

  eVent Medical | Inspiration® Int'l Brochure


Download
U.S.
Datasheet

  eVent Medical | Inspiration® 5i Ventilator (U.S.) Datasheet


Download
International
Datasheet

  eVent Medical | Inspiration® 5i Ventilator (Int'l) Datasheet


Contact eVent Medical

Do you have questions about our product, would like to speak to one of our Customer Service Specialists or require additional literature?

Request Information



Get Product Support

Comprised mostly of respiratory therapists, our clinical and technical teams are available 24 hours a day, 7 days a week.

Get Support Now




USA Specifications


Modes of Ventilation
  • Assisted Control Mandatory Ventilation (CMV)
  • Synchronized Intermittent Mandatory Ventilation (SIMV)
  • Spontaneous Ventilation (CPAP + PS, CPAP + VS, SPAP)

Additional Features
  • Automatic Tube Compensation
  • Work of Breathing, Imposed
  • Reference Loop Save Feature
  • Maneuvers: P0.1 and PiMax
  • Auto Control
  • Apnea Backup Ventilation
  • SPAP Philosophy Options: Time, Cycle + Time, Cycle + I:E
  • IBW Calculator
  • NIV On/Off in all Modes
  • Active Exhalation Valve
  • Automatic Leak Compensation (up to 60 lpm)
  • User defined flow sensor position
    • Proximally at the circuit Wye
    • Distally at the Expiratory Port

5i Optional Features
  • Spontaneous Breathing Trial (SBT Mode)
  • Tube Compensation
  • Suction Support
  • Recruitment Maneuver Tools
    • Pressure Slow Inflation / Deflation Maneuver
    • Volume Slow Inflation / Deflation Maneuver
    • Step Tool

Breath Types
  • Volume-controlled


(V-CMV; V-SIMV)

  • Pressure-controlled


(P-CMV; P-SIMV, PS)

  • Volume Targeted Pressure-controlled


(PRVC-CMV; PRVC-SIMV, VS)

  • Dual Level PEEP


(SPAP)

  • Equivalent to APRV (CareFusion)
    & BiLevel (Covidien)

Breath Triggering
  • Pressure triggering


0.5 - 20 cmH2O

  • Flow triggering


0.1 - 25 lpm


Additional Settings
  • Respiratory rate


0 - 150 bpm

  • Tidal volume


2 - 2000 ml*

  • PEEP / CPAP


0 - 50 cmH2O

  • Pcontrol


2 - 90 cmH2O*

  • Psupport


0 - 90 cmH2O

  • Peak flow (mandatory)


1 - 120 lpm*

  • Peak flow (spontaneous)


Up to 180 lpm*

  • I-Times


0.1 - 10 sec

  • Oxygen concentration


21 - 100%

  • Rise time settings


1 - 20

  • Exhalation sensitivity %
    (of spontaneous peak flow)


10 - 80%

  • Base Flow (with leak comp off)


2.5 - 25 lpm

  • Plateau (insp pause)


0 - 42 sec (0 - 70%)

  • PS Tmax


0.15 - 5.0 sec*


User Configurable Graphic User Interface (GUI) and Functions
  • Multiple Easy View Tabs
    (Main, Settings, Monitoring, Alarms, Configuration)




  • Manual & Automatic Time Based Event Markers




  • Graphics Display (3-Loops and 3-Waveforms)




  • Apnea Back-up




  • Smart Nebulizer™*




  • Smart Sigh™




  • Humidification Selection (HME, Humidifier, and None)




  • Heliox


0 - 80%*

  • User Defined Custom Default Settings





User Initiated Functions
  • Manual inspiration
  • Alarm silence
  • 100% Oxygen* (+20% Oxygen (Neonate))
  • Inspiratory and expiratory breath holds
  • Standby

Monitored / Displayed Data
  • Delivered oxygen concentrations:


21 - 100%

  • Trend Data (1-72 hrs.) (34 trend parameters)




  • Monitoring Data (41 monitored parameters):

Basic



 Advanced



 Mechanics

  • Ppeak

  • Ti

  • Auto PEEP
  • Ptrach

  • Te

  • Pplateau
  • Pmean

  • PF

  • RSBI
  • PEEP

  • PFe

  • C20/C
  • Pmin

  • I:E

  • RCe
  • Vti + Vti/kg

  • H:L

  • Cstat + Cstat/kg
  • Vte + Vte/kg

  • Ti/Ttot

  • Cdyn + Cdyn/kg
  • Exp Min Vol (Ve)

  • Leak rate

  • WOBimp
  • Ve/kg

  • FiO2

  • Rinsp + Rexp
  • Ve Spont

  • HeO2

  • PO.1
  • Resp. rate

  • Spont %1h

  • PiMax
  • Rate Spont

  • Spont %8h

  • PO.1 / PiMax

Real Time Graphics

  • Volume + time

  • Flow Volume loop
  • Flow + time

  • Pressure Volume loop
  • Pressure + time

  •  Pressure Flow loop

Prioritized Alarms (High, Medium and Low)
  • Auto set alarm feature & 1000 Event log

Communication Interfaces
  • Ethernet and Nurse call, RS232

Physical Data
  • AC power: 100 - 240 VAC (50/60Hz)
  • Internal and optional external battery
  • Screen: LCD 12.1” / Touch Screen
  • Internal Compressor (optional)
  • Battery backup on compressor < 120 min, off compressor > 120min
  • Gas supply 2 -6 Bar
  • Integrated CliniNet® Server with SNMP

Optional Remote Viewing System
  • CliniNet® Virtual Report™ Software


* Patient Type Dependent



Specifications subject to change.



Support & Maintenance

Comprised mostly of respiratory therapists, our clinical and technical teams are available 24 hours a day, 7 days a week.

Support


Our Warranty

Extended Warranties are available; contact your nearest Sales Representative for more information.
